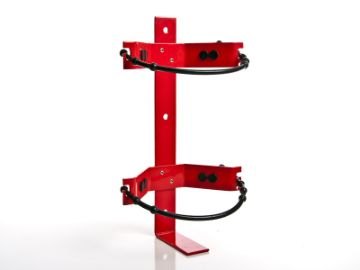

This 9 litre / 9kg DCP sized galvanised steel fire extinguisher bracket is designed to hold your fire extinguishers securely. The bracket is taller than standard allowing thin walled water fire extinguishers to be supported well.The fire extinguisher bracket features short extinguisher support, an adjustable pressed steel retaining strap and an over centre locking latch with security pin. The security pin is designed to prevent the latch from accidentally releasing as well as giving a visual indication of tampering. The zinc finish allows this bracket to be used in exposed outdoor environments and externally on a vehicle. This fire extinguisher vehicle bracket is ideal for mounting fire extinguishers on utes, trucks, plant and machinery.
The bracket has 4 x 10mm mounting holes, a foam strip and additional lower support to reduce rubbing and vibration noise.
| To Suit | Most fire extinguishers of 9 litres |
|---|
| Includes | Bracket, retaining strap, over centre latch and security pin |
|---|
| Material | Mild steel |
|---|
| Appearance | Galvanised |
|---|
Dimensions
- Width
- Height
- Depth
- Weight |
260mm
450mm
250mm
5kg |
|---|
As Packaged
- Length
- Width
- Height
- Weight |
460mm
270mm
260mm
5.4kg |
|---|
